Turn off a power outlet when you arm your Jablotron 100 alarm

Your devices that uses standby power (fx TV, Acces Points and so on) can be switched off Automatic when your alarm is armed if you connect the alarm to the power outlet where your devices are connected.

You will need:
Jablotron JA-110N
JA-110N_ny

and Jablotron JA-190PL housing
ja-190pl

  1. Place the JA-110N in the housing.
  2. Read the manual for the JA-110N to see what pins to set.
    For example set pin 6 if you want it to react when setting section 1.
  3. Connect the bus cable to the JA-110N.

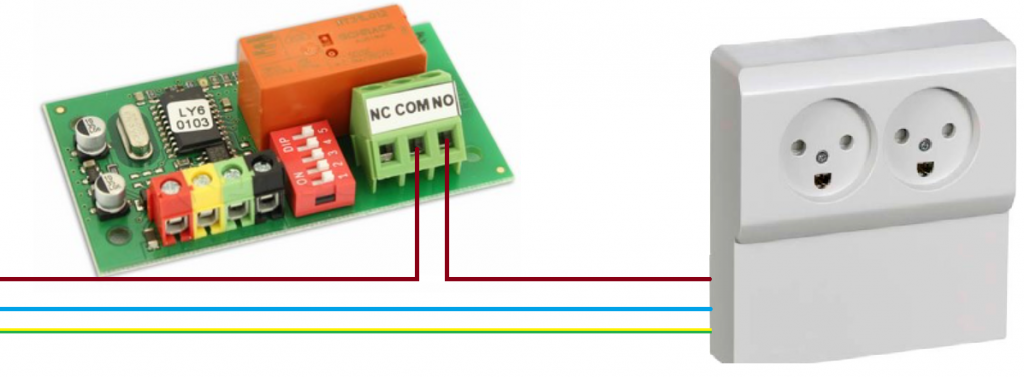

  4. Connect the phase from the power cable to COM and from NO to the power outlet.

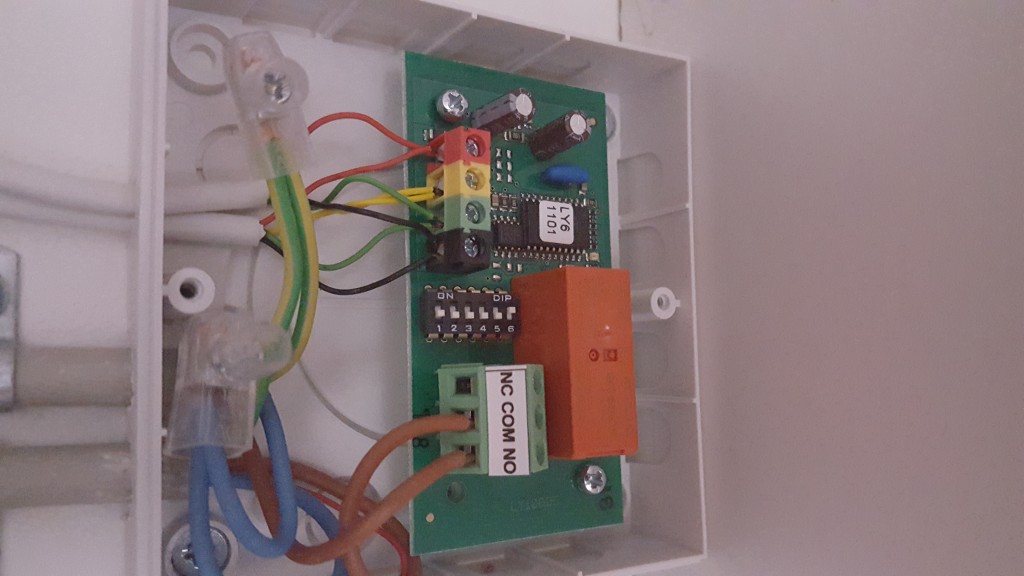

JA-110N
JA-110N
